One bench. Every angle.

Product design

From sketch to production-ready.

An adjustable training bench that replaces several machines, taken past concept to a design ready for manufacture.

Project type

Client
Client project, product design
My part
Sketch, branding, concept development, manufacturing support
Brief
One adaptable bench in place of several machines
Delivered
Technical drawings, material specifications, supplier quotations, branding

The what

An all-in-one product offering flexibility and adaptability.

The client wanted an adaptable, efficient training bench that could support a broad range of exercises without relying on the complexity of multiple machines.

The concept explored adjustable configurations that use body weight and gravity for resistance, with attachment points where more resistance can be added to target specific muscle groups.

Versatility, adjustment and intuitive use came first: one piece of equipment for core-focused training and for more varied full-body workouts. Under the NDA, specific build features and dimensions stay private.

Fig. 01

The bench, its branded head and its resistance bands, up close.

The how

Designed to be made, not just rendered.

The design went beyond concept development into a production-ready solution: detailed technical drawings, fixings and assembly methods, and clear material specifications to support accurate costing and manufacture.

I also gathered supplier research and quotations for the client, comparing the practical and commercial implications of manufacturing in the UK against production and shipping from outside the EU.

Product renders

From the studio to the gym floor.

Some of the product renders that were handed to the client as additional final handover material.

Fig. 02

The five renders, in order.

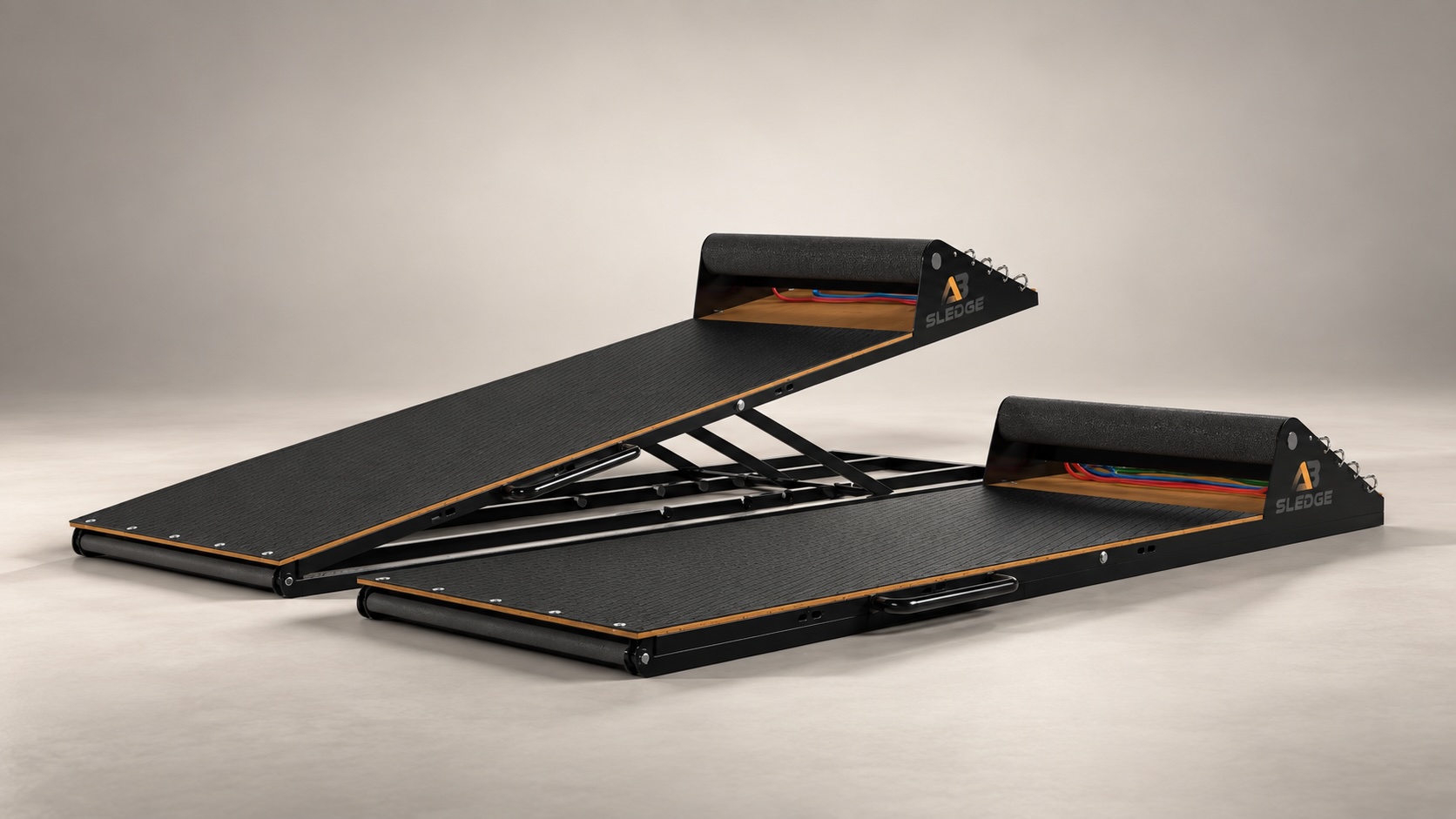

Two Absledge benches, one inclined and one flat
1Inclined and flat

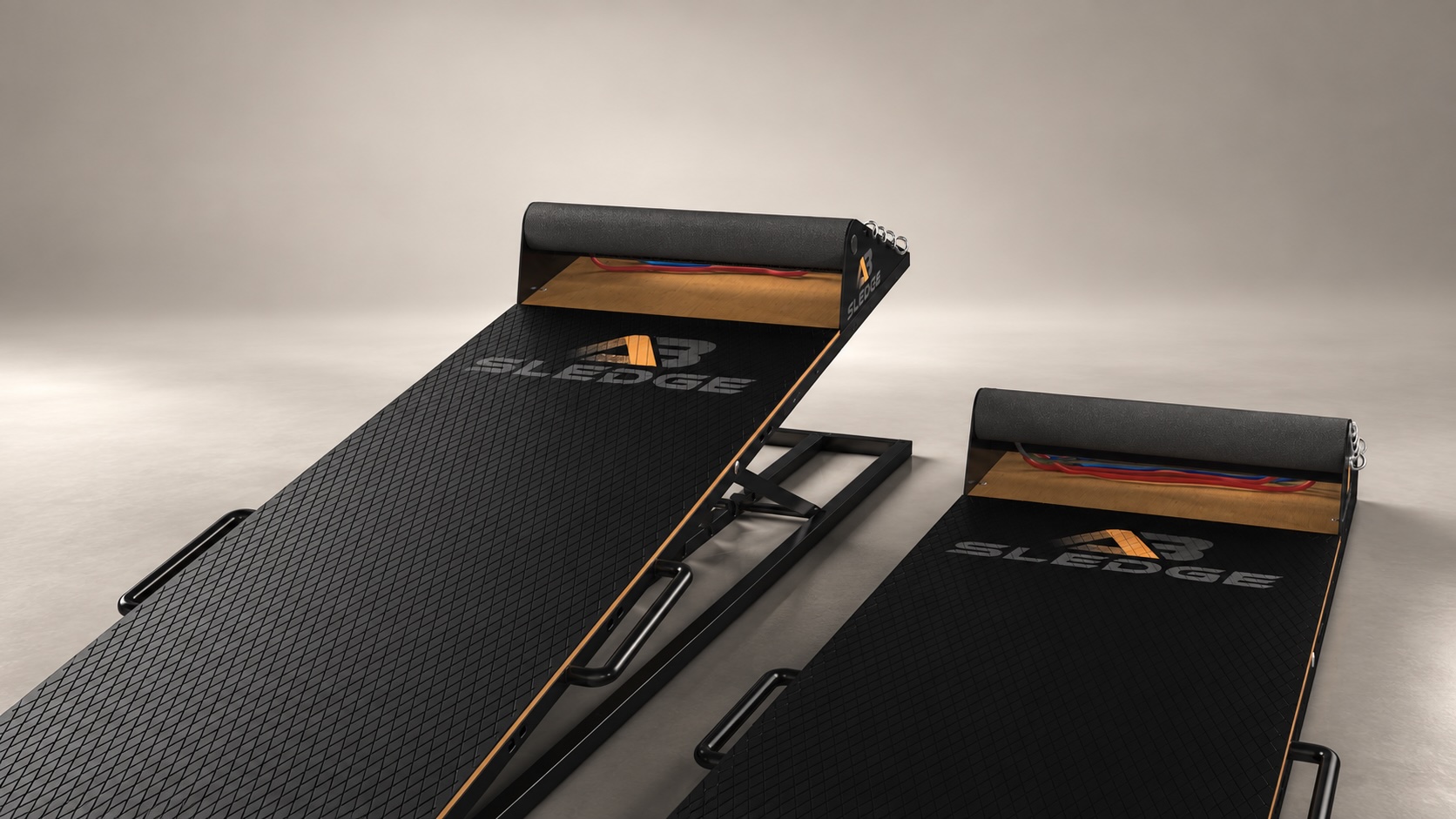

The textured decks of two benches, branded AB Sledge, with handles at the sides
2The branded deck

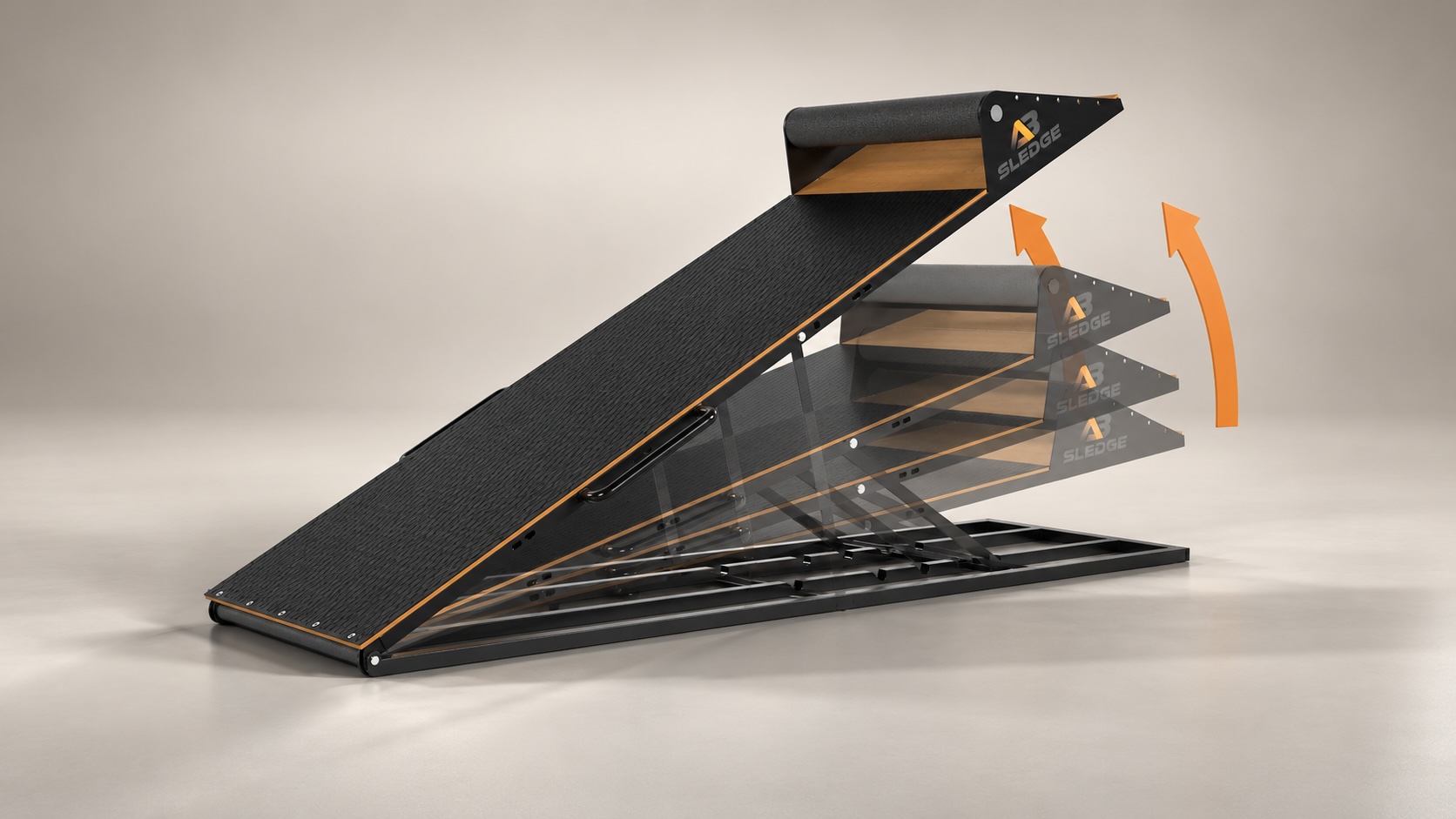

The bench's incline positions, with orange arrows marking the adjustment
3Incline positions

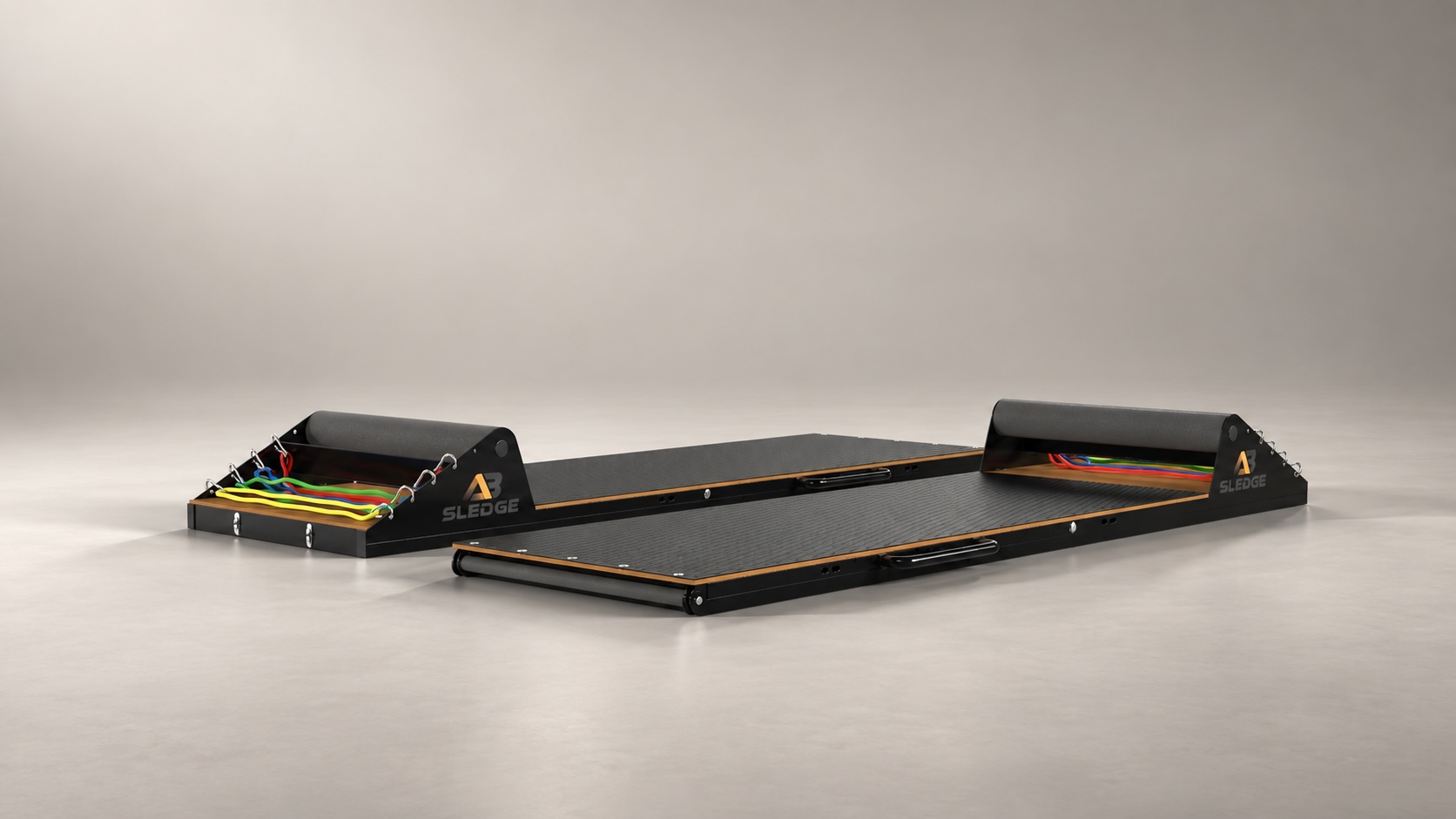

Two benches laid flat end to end, with coloured resistance bands in the head
4Resistance bands

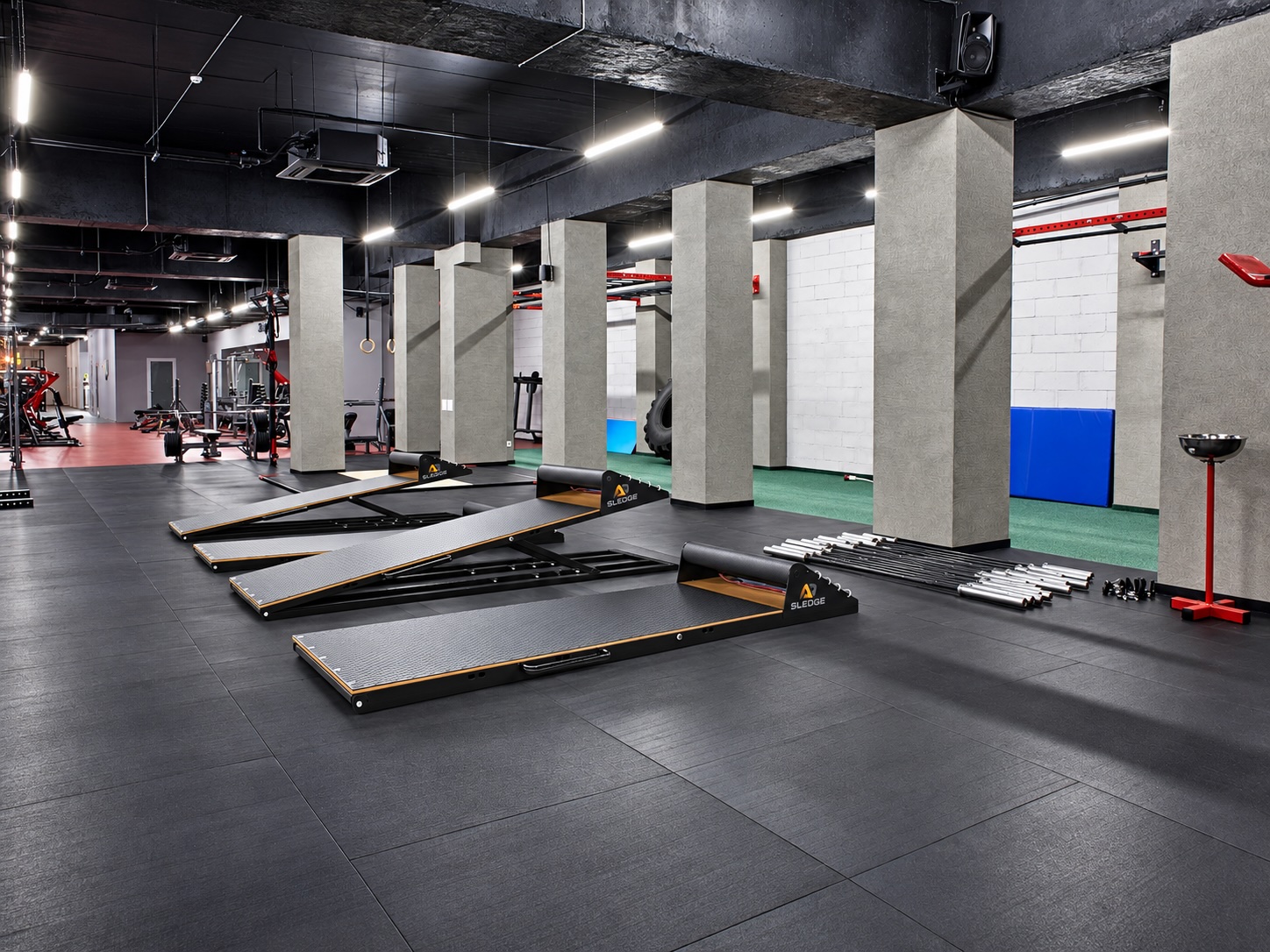

Several Absledge benches set out across a gym floor
5On the gym floor

Logo concepts

Four initial concepts for the client to choose from.

Fig. 03

Switch between the stages below to see the logo evolve into the final design the client chose to move forward with.

Stage
Logo concept 1, white on black Logo concept 1, black on white
1Concept one
Logo concept 2, white on black Logo concept 2, black on white
2Concept two
Logo concept 3, the Absledge wordmark, white on black Logo concept 3, the Absledge wordmark, black on white
3Concept three
Logo concept 4, the AB Sledge logo, white on black Logo concept 4, the AB Sledge logo, black on white
4Concept four
The Absledge colour chart: the palette, with the hex value and character of each colour
Logo brand guidelines
The final AB Sledge logo in its colours, orange and grey, on a textured light ground
Final design, in colour
